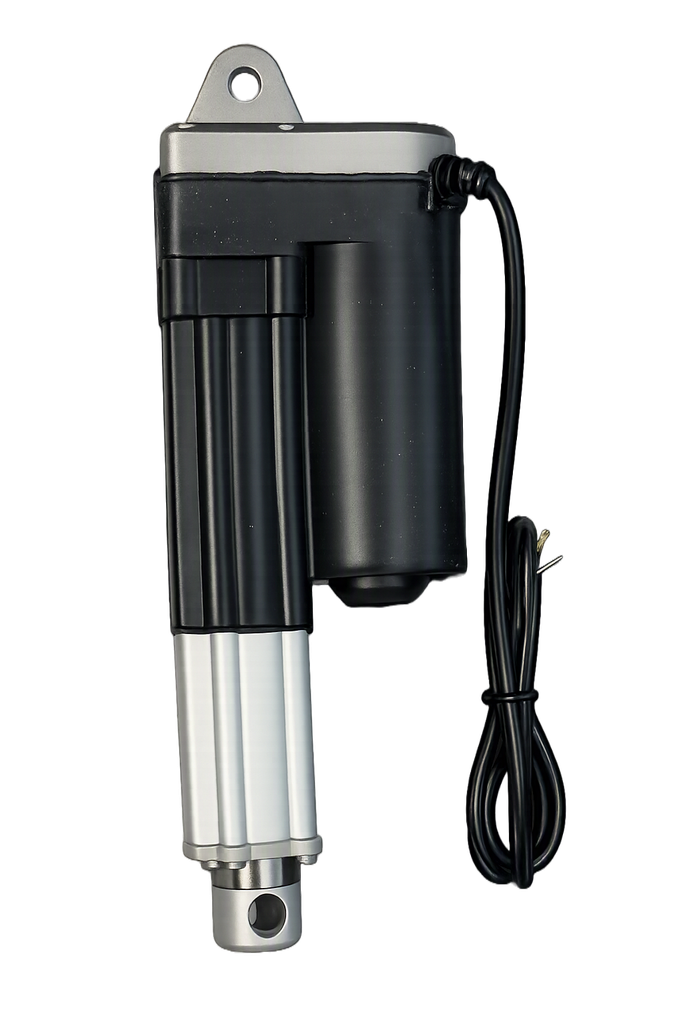

TA2P-2176-004 Linear Actuator

A compact and durable 12 V linear actuator designed for reliable push/pull motion in automation, off‑grid systems, machinery, and outdoor environments. With strong lifting power, smooth travel, and IP66D protection, it’s ideal for solar mechanisms, smart equipment, agricultural systems, and industrial projects where consistent performance matters.

Key Specifications

• 12 V DC operation

• 100 mm stroke

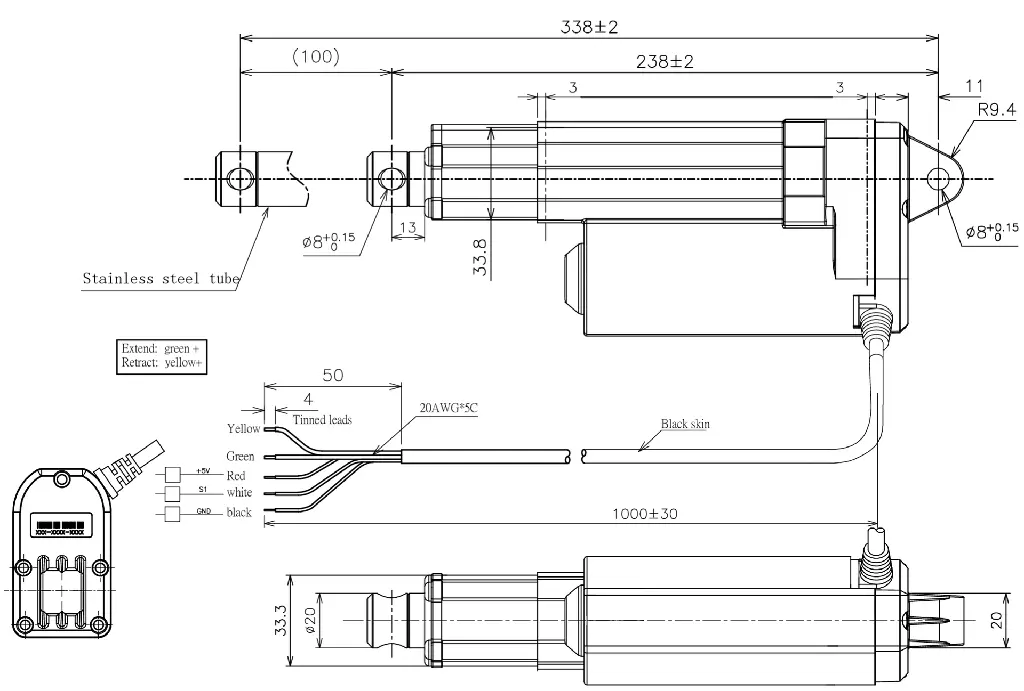

• 238 mm retracted length

• 338 mm extended length

• 150 kg load capacity

• 11.1 mm/s speed (no load)

• 9.5 mm/s speed (rated load)

• ≤ 70 dB noise level

• Built‑in limit switches

• Hall sensor feedback (9.59 pulses/mm)

• Stainless‑steel tube + aluminum housing

• IP66D dust‑tight & water‑resistant

• Ø 8 mm front and rear mounting holes

• 1000 mm cable with tinned leads

• Operating temperature: −25 °C to +65 °C
